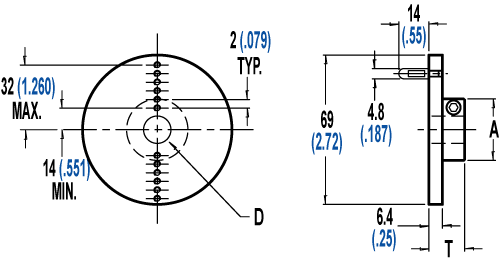

Model 705 Drive Plate

HOME제품정보Magnetic Technologies LtdParts, Accessories

← Parts, Accessories 목록으로

Model 705

Drive Plate

Pin Location (R) * Stainless pin can be positioned at any "R"
mm 10 12 14 16 18 20 22 24 26 28 30 32
in 0.393 0.472 0.551 0.630 0.709 0.788 0.866 0.945 1.024 1.103 1.181 1.260
Metric ( mm ) Dimensions English (in) Dimensions
D A T Model D A T
11.00 27.9 17.3 705-0433 0.433 1.10 0.68
12.70 28.4 16.8 705-0500 0.500 1.12 0.66
15.00 34.0 19.3 705-0591 0.591 1.34 0.76
15.88 33.3 17.5 705-0625 0.625 1.31 0.69
16.00 34.0 19.3 705-0630 0.630 1.34 0.76
19.05 38.1 19.1 705-0750 0.750 1.50 0.75
20.00 40.0 21.3 705-0787 0.787 1.57 0.84
22.00 42.0 21.3 705-0866 0.866 1.65 0.84
22.23 41.1 19.1 705-0875 0.875 1.62 0.75
25.00 45.0 21.3 705-0984 0.984 1.77 0.84
25.40 44.5 19.1 705-0100 1.000 1.75 0.75

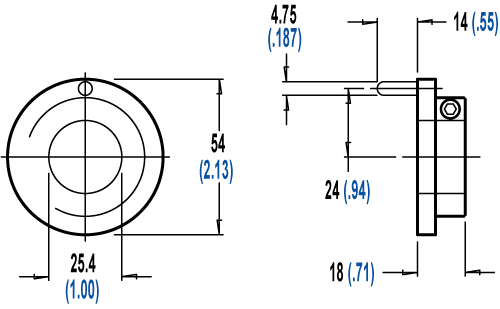

Model 710 Drive Plate

Model 710

Drive Plate

Metric ( mm ) Dimensions English (in) Dimensions
D A T Model D A T
25.40 44.50 17.8 710-040 1.00 1.75 0.70

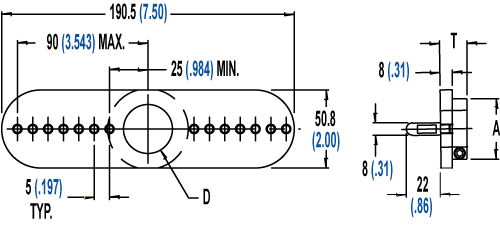

Model 720 Drive Plate

Model 720

Drive Plate

Pin Location (R) * Stainless pin can be positioned at any "R"
mm 25 30 35 40 45 50 55 60 65 70 75 80 85 90
in 0.984 1.182 1.378 1.575 1.772 1.969 2.165 2.362 2.559 2.756 2.953 3.150 3.347 3.543
Metric ( mm ) Dimensions English (in) Dimensions
D A T Model D A T
25.40 44.5 20.6 720-0100 1.000 1.75 0.81
28.00 48.0 23.0 720-0110 1.102 1.89 0.90
31.75 52.3 20.6 720-0125 1.250 2.06 0.81
32.00 45.0 23.0 720-0126 1.259 2.13 0.90
34.93 57.2 22.1 720-0137 1.375 2.25 0.87
35.00 57.0 23.0 720-0138 1.378 2.24 0.90
36.00 57.0 23.0 720-0142 1.417 2.24 0.90
38.10 60.5 22.1 720-0150 1.500 2.38 0.87
